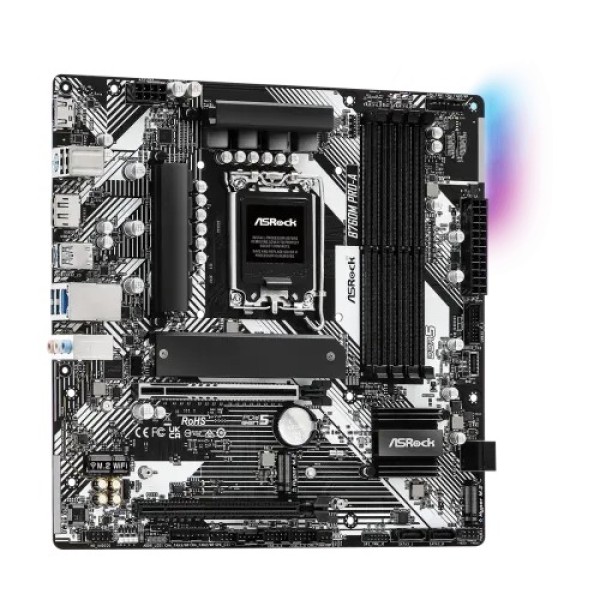

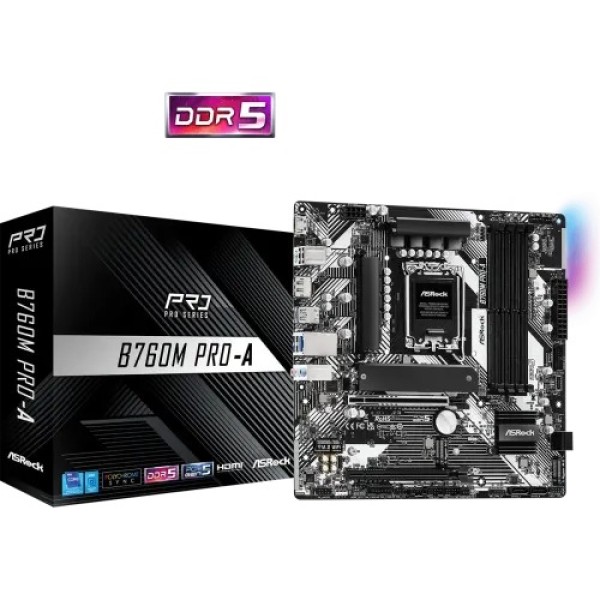

ASRock B760M Pro-A DDR5 Micro ATX Motherboard
Price : 16,900 Tk
Brand: : ASRock
Stock : In Stock
- Model : B760M Pro-A
Key Features
-
16,900 Tk
ASRock B760M Pro-A DDR5 Micro ATX Motherboard
The ASRock B760M Pro-A DDR5 Micro ATX motherboard is a powerful and versatile platform designed to support the latest Intel Core processors, including the 14th, 13th, and 12th generations with the LGA1700 socket. It features a robust 7+1+1 power phase design, utilizing Dr.MOS for efficient VCore and GT performance. With four DDR5 DIMM slots, it supports dual-channel memory with speeds up to 7200+ MHz when overclocked, providing exceptional performance for gaming, content creation, and multitasking. This motherboard is equipped with a PCIe 5.0 x16 slot for the latest high-performance graphics cards, as well as additional PCIe 3.0 x16 and M.2 Key E slots for WiFi expansion. For graphics output, the board offers HDMI and DisplayPort options. Audio is powered by the Realtek ALC897 7.1-channel HD audio codec, ensuring crystal-clear sound quality. Storage and connectivity are well catered for, with four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) for fast storage solutions. USB connectivity is abundant, featuring two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front). Networking is handled by the Dragon 2.5G LAN, providing high-speed internet connectivity. The motherboard also supports ASRock's Auto Driver Installer, simplifying the setup process for users.
ASRock B760M Pro-A DDR5 Micro ATX Motherboard from best Computer Shop in Bangladesh
You can get the original ASRock B760M Pro-A DDR5 Micro ATX Motherboard from best Computer Shop in Bangladesh. We have a large collection of the latest ASRock Intel Motherboard to purchase for your Processor. Order Online Or Visit your Nearest Seegate Technology Shop to get yours at the lowest price.
What is the price of ASRock B760M Pro-A DDR5 Micro ATX Motherboard in Bangladesh?
The latest price of ASRock B760M Pro-A DDR5 Micro ATX Motherboard in Bangladesh is 16,900Tk. You can buy the ASRock B760M Pro-A DDR5 Micro ATX Motherboard at the best price from our website or visit any of our showrooms.
| Basic Information | |
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Memory | |
| RAM Type | DDR5 |
| Total RAM Slot | 4 |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| Max RAM Capacity | 256GB |
| Graphics | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated. |
| Connector & Ports | |
| HDMI Port | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

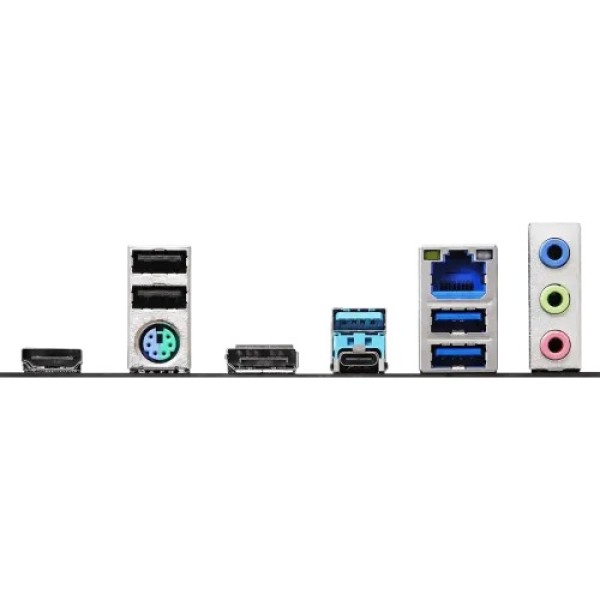

| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| Other Features | |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Warranty | |
| Manufacturing Warranty | 3 years |
