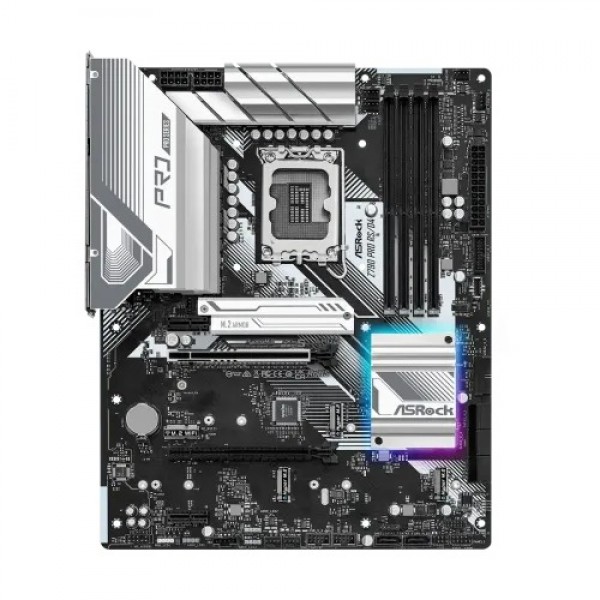

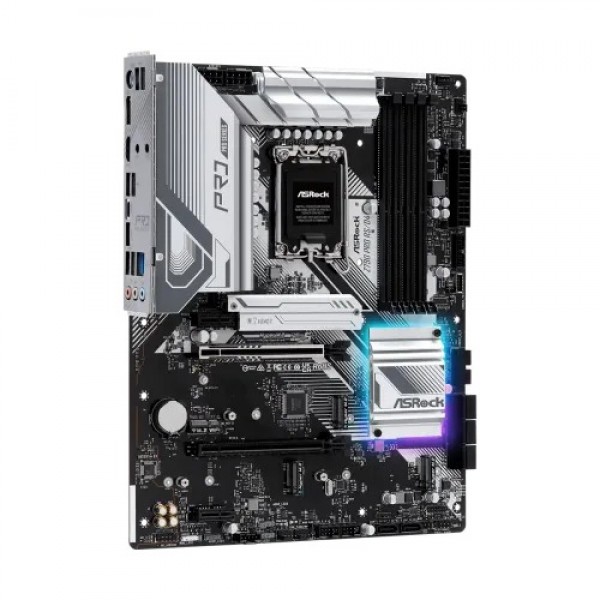

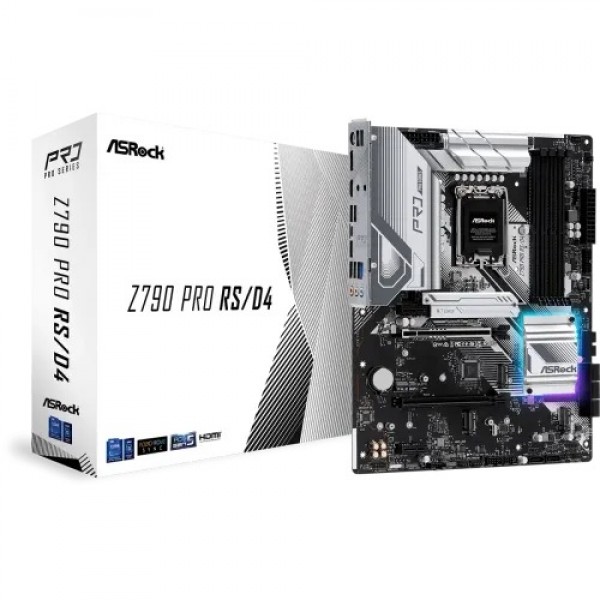

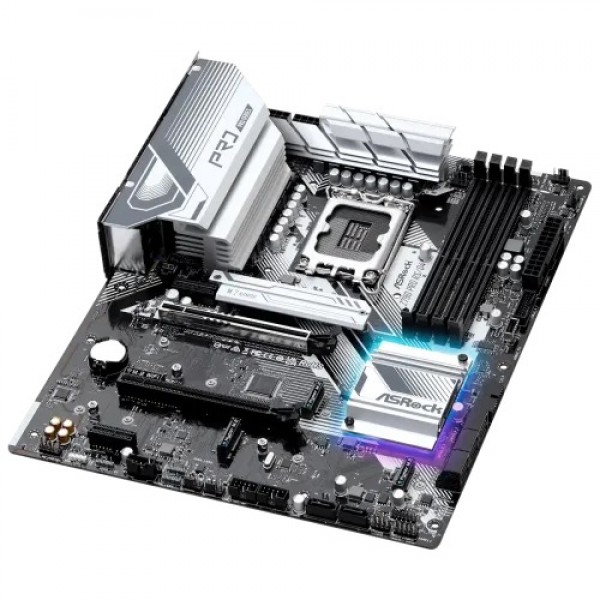

ASRock Z790 Pro RS/D4 ATX Motherboard
Price : 28,500 Tk
Brand: : ASRock
Stock : In Stock
- Model : Z790 Pro RS/D4
Key Features
-
28,500 Tk
- Ex Tax: 28,500 Tk
ASRock Z790 Pro RS/D4 ATX Motherboard
ASRock Z790 Pro RS/D4 motherboard supports 14th Gen 13th Gen & 12th Gen Intel Core Processors (LGA1700), 14+1+1 Phase Power Design, Dr.MOS for VCore+GT. It comes with 4 x DDR4 DIMMs and supports up to 5333+(OC). This Motherboard featured with 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi. It comes with 1 HDMI, 1 DisplayPort, eDP graphics output options. The ASRock Z790 Pro RS/D4 offers 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This ASRock motherboard also has 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3. It comes with 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front), and Realtek 2.5G LAN. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. ASRock Z790 Pro RS/D4 13th Gen ATX Motherboard features via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio, which offers you the most engaging listening experience, vibrant and rich with details. This ASRock Z790 Pro RS/D4 motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD. This 13th Gen ASRock motherboard is also capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. The latest ASRock Z790 Pro RS/D4 Motherboard comes with 03 years warranty.
ASRock Z790 Pro RS/D4 ATX Motherboard from best Computer Shop in Bangladesh
You can get the original ASRock Z790 Pro RS/D4 ATX Motherboard from best Computer Shop in Bangladesh. We have a large collection of the latest ASRock INTEL Motherboard to purchase for your Processor. Order Online Or Visit your Nearest Seegate Technology Shop to get yours at the lowest price.
What is the price of ASRock Z790 Pro RS/D4 ATX Motherboard in Bangladesh?
The latest price of ASRock Z790 Pro RS/D4 ATX Motherboard in Bangladesh is 28,500Tk. You can buy the ASRock Z790 Pro RS/D4 ATX Motherboard at the best price from our website or visit any of our showrooms.
| Basic Information | |
| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel Z790 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| Expansion Slots | |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
| Memory | |
| RAM Type | DDR4 |
| Total RAM Slot | 4 x DDR4 DIMMs |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Max RAM Capacity | 128GB |
| Graphics | |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Connector & Ports | |
| HDMI Port | 1 x HDMI Port |
| Display Port (s) | 1 x DisplayPort 1.4 |

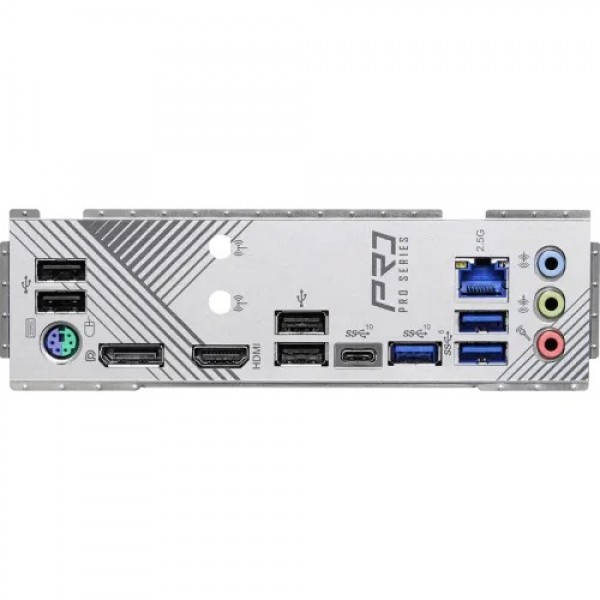

| USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Other Features | |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Warranty | |
| Manufacturing Warranty | 3 years |
