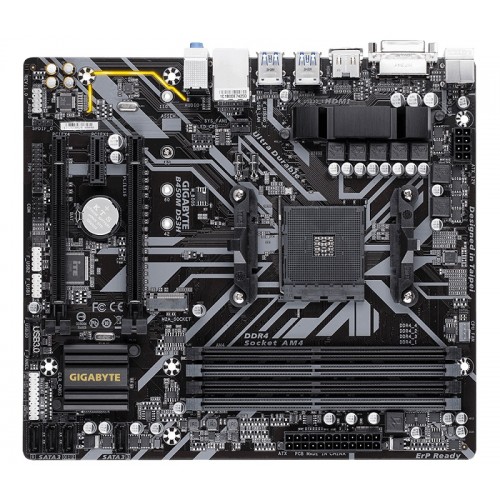

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Price : 10,800 Tk
Regular Price: 12,100 Tk
Status: In Stock

Key Features

  • Model: B450M DS3H
  • Supports Up to AMD Ryzen 5000 series Processors
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 3 x PCI Express slots
Based on 0 reviews. - Write a review
10,800 Tk
Ex Tax: 10,800 Tk
Add to Cart
Buy Now Question
Add to Wish List Compare this Product


বিঃদ্রঃ অস্থিতিশীল বাজার পরিস্থিতির কারণে পণ্য অর্ডার করার পূর্বে আমাদের হট লাইনে যোগাযোগ করুন।

Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
RAM Type DDR4
Total RAM Slot 4 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max RAM Capacity 64 GB
Graphics
Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2
Connector & Ports
HDMI Port 1x HDMI
USB (s) Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty
Manufacturing Warranty 3 years

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard

Gigabyte B450M DS3H AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode and 3 PCIe slots. Considering the graphics, it will support maximum resolution of 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB 3.1 Gen 1, RGB Fusion supports RGB LED Strips in 7-Colors and Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software.  Purchase Gigabyte B450M DS3H board with 3 years of warranty facility at best price from in Dhaka, Rangpur, Chattagram, Khulna & Sylhet. Order latest AMD board from Star Tech’s online store and have the delivery at any location in Bangladesh.

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard from best Computer Shop in Bangladesh

You can get the original Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard from best Computer Shop in Bangladesh. We have a large collection of the latest GIGABYTE AMD Motherboard to purchase for your Processor. Order Online Or Visit your Nearest Seegate Technology Shop to get yours at the lowest price.

What is the price of Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard in Bangladesh?

The latest price of Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard in Bangladesh is 10,800Tk. You can buy the Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard at the best price from our website or visit any of our showrooms.
