ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard
Price : 52,000 Tk
Regular Price: 57,200 Tk
Status: In Stock

Key Features

  • Model: TUF GAMING Z790-BTF WIFI
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7200(O.C.)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 1 x Intel 2.5Gb Ethernet, Intel Wi-Fi 7
Based on 0 reviews. - Write a review
52,000 Tk
Ex Tax: 52,000 Tk
Add to Cart
Buy Now Question
Add to Wish List Compare this Product


বিঃদ্রঃ অস্থিতিশীল বাজার পরিস্থিতির কারণে পণ্য অর্ডার করার পূর্বে আমাদের হট লাইনে যোগাযোগ করুন।

Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot
M.2 Socket Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Memory
RAM Type DDR5
Total RAM Slot 4 x DIMM
Supported Memory 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Max RAM Capacity 192GB
Graphics
Graphics 1 x DisplayPort 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on the processors' or graphic cards' resolution.

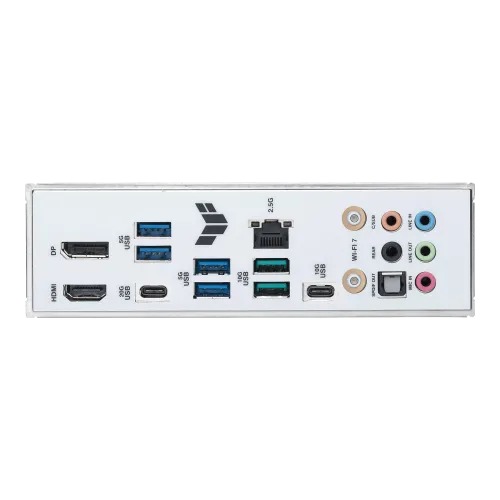

Connector & Ports
HDMI Port 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth v5.4
Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Rear optical S/PDIF out port - Dedicated audio PCB layers - Audio Cover - Unique de-pop circuit
Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt (USB4) header
Other Features
Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner MyASUS TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty
Manufacturing Warranty 3 years

ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard

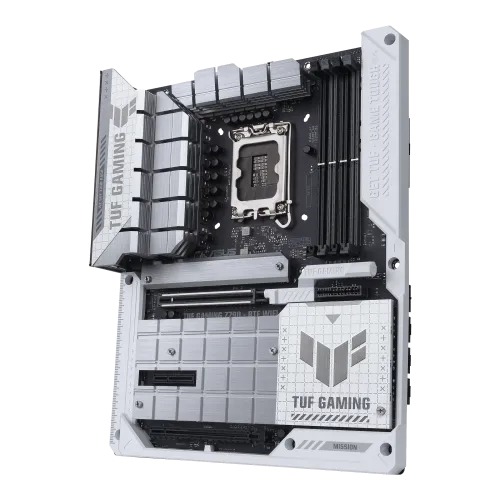

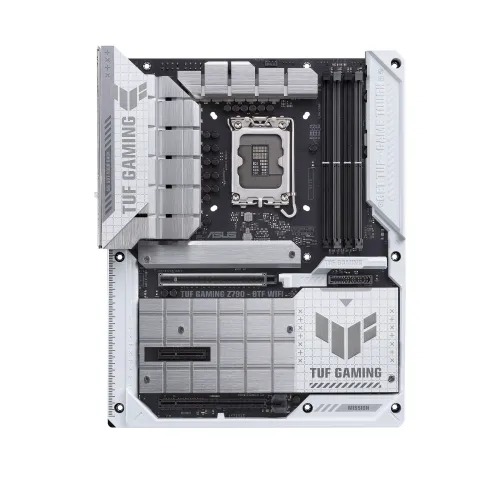

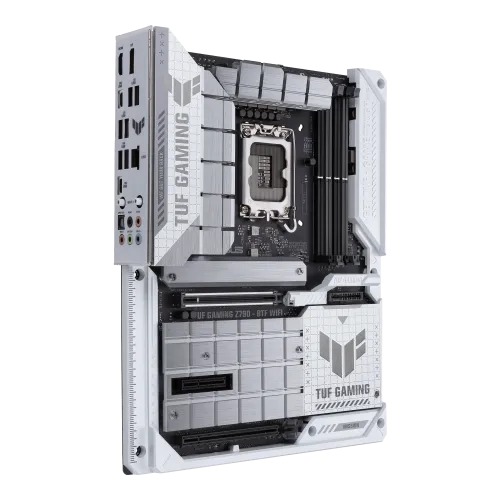

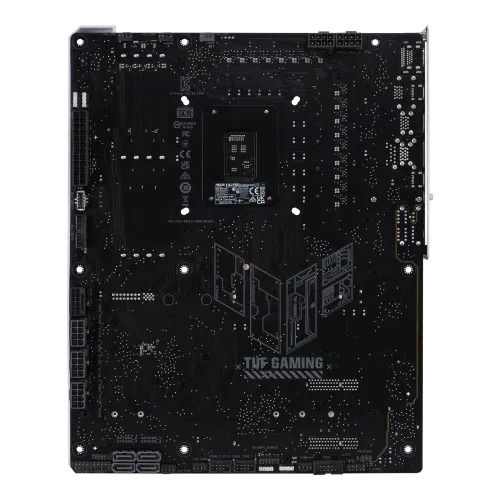

The ASUS TUF GAMING Z790-BTF WIFI ATX motherboard combines the essential elements of the latest Intel processors with game-ready features and proven durability. Representing a new era for PC DIY gamers, the “BTF” in its name stands for “Back To (the) Future.” This advanced BTF series motherboard is designed to hide all its connectors on the underside, offering clean cable management and a minimalist build appearance. Additionally, it delivers up to 600 watts for BTF graphics cards through a high-power graphics card slot. The motherboard supports 14th, 13th, and 12th Gen Intel processors (LGA1700) and up to 4x DDR5 RAM with a maximum capacity of 192GB and speeds up to 7200(O.C.). For graphics output, it includes 1x HDMI and 1x DisplayPort. Additional features include Intel 2.5Gb Ethernet and Intel Wi-Fi 7, ensuring robust and high-speed connectivity options.

Buy ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard from Seegate Technology

In Bangladesh, you can get the original ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard at the best Computer Shop in Bangladesh. We have a large collection of the latest ASUS Motherboard to purchase. Order Online Or Visit your Nearest Seegate Technology Shop to get yours at the lowest price.

What is the price of ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard in Bangladesh is 52,000Tk. You can buy the ASUS TUF GAMING Z790-BTF WIFI ATX Motherboard at the best price from our website or visit any of our showrooms.
